Installation instructions:
Compact linear wireless BLE mesh smart sensor.
Integrated with PIR motion & daylight sensor.
Single-channel 0-10V dimmable.
IR reset(supports IR reset by TIOSL IR remote control).
Specifications:
Operating voltage: DC12-24V
Operating current: 100mA (max)
Max. lauch power: 8dBm
Rx sensitivity: -92dB
Weight: 35g
IP rating: IP20
Communication frequency: 2405~2480MHz
Mounting height: ＜20ft or 6m(Open environment）
Photosensitive range: 10-1000Lux
Operating temperature: -20~+60℃
Dimension: 70mm(L) x 25mm(W) x22.7mm (H)
Max. communication distance: 50m(164ft)

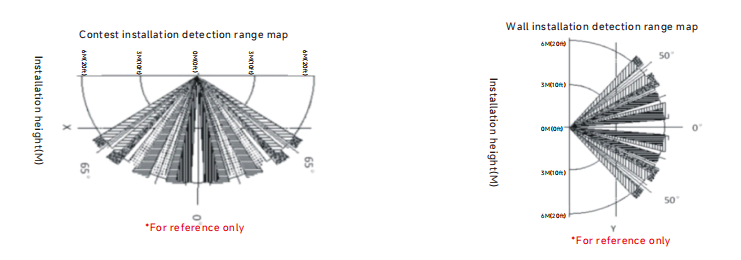

Sensor Detection Angle:

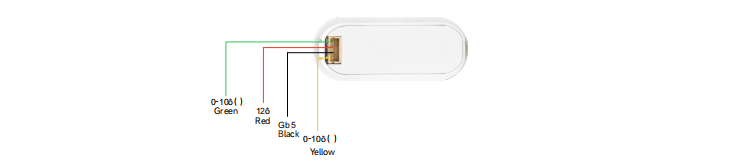

Wiring Diagram
size
photometric

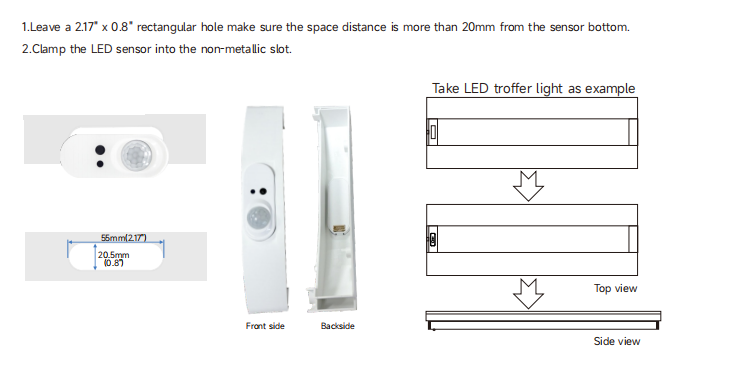

install
package
video Installation instructions:
